prose.Image.__init__#

Image.__init__(fitspath=None, data=None, header=None, verbose=True, telescope=None, **kwargs)#

Object containing image data and metadata

When a FITS path (or header) is provided, keyword values are used to identify and instantiate a Telescope object. Image attributes then use this object to retrieve specific image information such as ra, dec, untis… etc

Parameters:

  • fitspath (str or Path, optional) – file path , by default None

  • data (numpy.ndarray, optional) – image data, by default None

  • header (dict-like, optional) – image metadata, by default None

Example

from prose.tutorials import image_sample

# loading and showing an example image
image = image_sample("05 38 44.851", "+04 32 47.68")

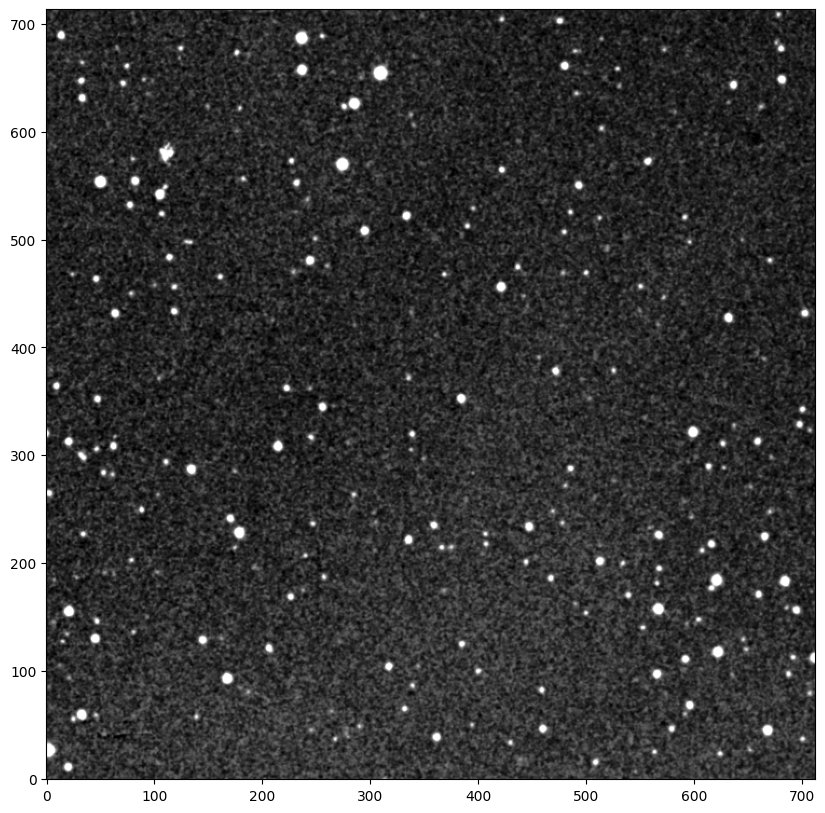

image.show()

INFO Querying https://archive.stsci.edu/cgi-bin/dss_form

<Axes: >
../../_images/prose.Image.__init___0_2.png
image.header[0:10] # the 10 first lines

SIMPLE  =                    T /FITS: Compliance
BITPIX  =                   16 /FITS: I*2 Data
NAXIS   =                    2 /FITS: 2-D Image Data
NAXIS1  =                  713 /FITS: X Dimension
NAXIS2  =                  714 /FITS: Y Dimension
EXTEND  =                    T /FITS: File can contain extensions
DATE    = '2023-04-14        '  /FITS: Creation Date
ORIGIN  = 'STScI/MAST'         /GSSS: STScI Digitized Sky Survey
SURVEY  = 'POSSI-O '           /GSSS: Sky Survey
REGION  = 'XO538   '           /GSSS: Region Name

Once this object is instantiated, its parameters are mapped to the ones of the telescope, detected from the header information. This exposes conveniant attributres, for example:

print(f"pixel scale : {image.pixel_scale:.2f}\nFOV: {image.fov}\nnight: {image.night_date}\n")

pixel scale : 1.01 arcsec
FOV: [0.20003263 0.20031318] deg
night: 1955-11-22

some of them being directly translated into astropy Quantity or datetime object.
