Sources

In prose, objects detected in astronomical images are represented by Source objects. To encompass the large variety of sources encountered in astronomical images, prose fatures three kinds of sources:

• PointSource: star

• ExtendedSource: comet, galaxy or lensed source

• TraceSource: diffracted spectrum, satellite streak or cosmic ray

To demonstrate how to use these objects, we will work on the following example image:

from prose.tutorials import source_example

im = source_example()
_ = im.show()

Detection

To detect these sources, detection blocks from the prose.blocks.detection module can be used:

from prose import example_image, blocks

im = blocks.detection.AutoSourceDetection()(im)
im.show()

<AxesSubplot:>

Note

Source-specific detection blocks are also available, like the PointSourceDetection, as well as blocks with legacy detection algorithms such as DAOFindStars

From here, sources are located in the Image.sources list

im.sources

array([<prose.core.source.PointSource object at 0x2b0f7d370>,
       <prose.core.source.ExtendedSource object at 0x2b0e23250>,
       <prose.core.source.TraceSource object at 0x1093d26a0>],
      dtype=object)

where we can identify the three types of sources, like an extended source at index 1

print(im.sources[1])

⬭ ExtendedSource 1
  ----------------
  coords   79.96   29.99
  a, b     38.35   15.86
  e         0.41
  region    True

Sources properties

Such sources contain useful properties and methods used throughout prose to perform image processing.

Apertures

Apertures from the photutils.aperture module can easily be instantiated from a Source object

import matplotlib.pyplot as plt

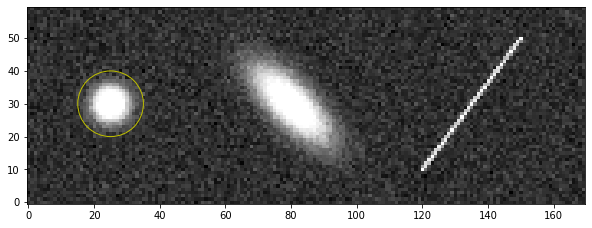

source = im.sources[0]
aperture = source.circular_aperture(10, scale=False)

# plotted on top of the image
im.show(stars=False)
_ = aperture.plot(color="y")

For automatic treatments, the Source.aperture method provides an aperture specific to each type of source

im.show(stars=False)

for source in im.sources:
    aperture = source.aperture()
    _ = aperture.plot(color="y")

and associated annulus methods

im.show(stars=False)

for source in im.sources:
    aperture = source.annulus()
    _ = aperture.plot(color="y")
