Trim

class prose.blocks.Trim(skip_wcs=False, trim=None, **kwargs)

Image trimming. If trim is not specified, triming is taken from the telescope characteristics

write Image.header

modify data

Parameters:

• skip_wcs (bool, optional) – whether to skip applying trim to WCS, by default False

• trim (tuple, int or flot, optional) – (x, y) trim values, by default None which uses the trim value from the image telescope definition. If an int or a float is provided trim will be be applied to both axes.

Example

In what follows we generate an example image and apply a trimming on it

from prose.tutorials import example_image
from prose.blocks import Trim

# our example image
image = example_image()

# Creating and applying the Trim block
trim = Trim(trim=100)
trimmed_image = trim(image)

INFO telescope A not found - using default

INFO telescope A not found - using default
INFO telescope A not found - using default

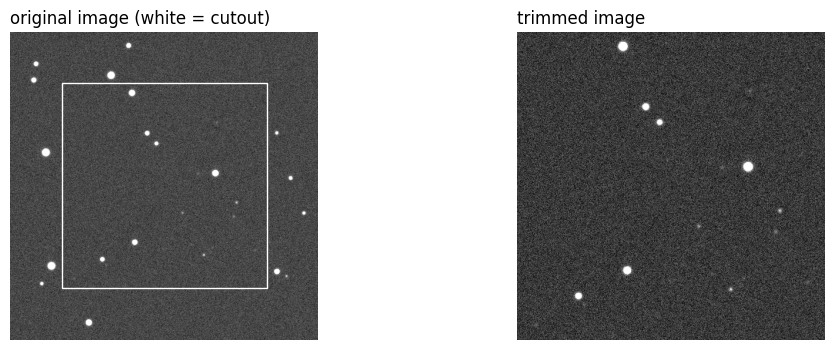

We can now see the resulting trimmed image against its original shape

import matplotlib.pyplot as plt

plt.figure(figsize=(12, 4))

ax1 = plt.subplot(121)
image.show(ax=ax1)
trim.draw_cutout(image)
plt.axis("off")
_ = plt.title("original image (white = cutout)", loc="left")

ax2 = plt.subplot(122)
trimmed_image.show(ax=ax2)
plt.axis("off")
_ = plt.title("trimmed image", loc="left")
