Custom block 2

Here is a more detailed example on how to create a custom block by subclassing the Block class (and make it user and community-friendly). The purpose of the Block we will create is to correct for image vignetting

Dataset

We first consider an example image

from prose.tutorials import example_image

image = example_image(seed=4)

in which we include some vignetting

import numpy as np

# vignette function
def gaussian2D(XY, xy, sigma, amplitude=1):
    X, Y = XY
    x, y = xy
    return amplitude*np.exp(-((X-x)**2/sigma**2) -((Y-y)**2/sigma**2))**3

# vignetting the image data
XY = np.indices(image.shape)
vignette = gaussian2D(XY, (np.array(image.shape)/2), 1000)
image.data *= vignette

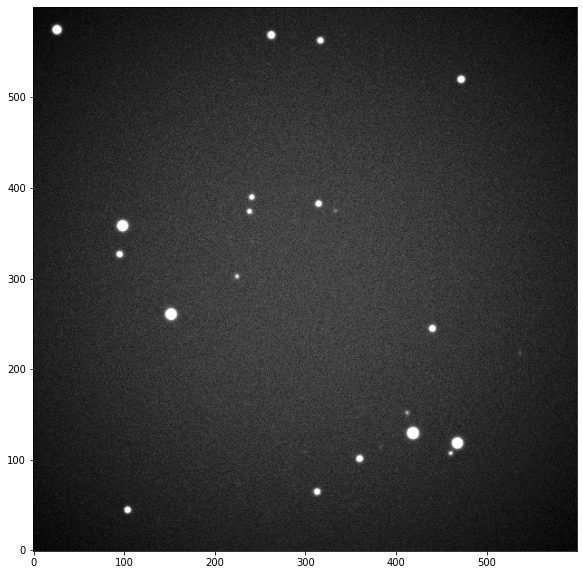

image.show()

<AxesSubplot:>

Method

The method to correct for the vignetting is simple:

1. We build a sigma-clipped version of the image to exclude bright (stars) pixels (iteratively)

2. We fit the vignette model to the sigma clipped data

3. We correct the image from the fitted vignette

1. Sigma clipping

import matplotlib.pyplot as plt

sg_image = image.data.copy()

sg_image = image.data.copy()
mask = np.ones_like(sg_image).astype(bool)
for _ in range(5):
    mask = np.abs((sg_image - np.median(sg_image[mask]))) < 5*np.std(sg_image[mask])
sg_image[~mask] = np.nan

plt.imshow(sg_image)

<matplotlib.image.AxesImage at 0x2b014c220>

2. Fitting the model

from scipy.optimize import minimize

center = np.array(image.shape)/2

def model(p):
    a, s = p
    return a*gaussian2D(XY, center, s)

def nll(p, sg_image):
    _model = model(p)
    return np.log(np.nansum((_model - sg_image)**2))

x0 = [5000, image.shape[0]]
sol = minimize(nll, x0, bounds=((0, np.nanmax(sg_image)), (0, 2000)), args=(sg_image,))

3. Correction

corrected_image = image.copy()
corrected_image.data -= model(sol.x)

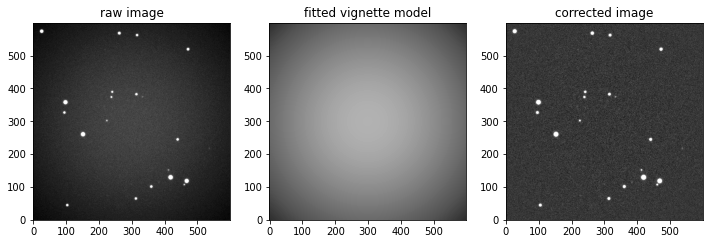

# plotting
# --------
plt.figure(None, (12, 6))

ax1 = plt.subplot(131, title="raw image")
image.show(ax=ax1)

ax2 = plt.subplot(132, title="fitted vignette model")
plt.imshow(model(sol.x), origin="lower", cmap="Greys_r", vmin=np.nanmin(sg_image), vmax=np.nanmax(sg_image))

ax3 = plt.subplot(133, title="corrected image")
_ = corrected_image.show(ax=ax3)

Block creation

We will now create a block to be able to apply this correction in a Sequence ( and easily associate it to other processing blocks)

The simple way

The simpliest way is to subclass the Blockclass, and copy-paste the code above into its run(self, image) method, which will be called on each Image

from prose import Block

class SimpleVignettingCorr(Block):

    def __init__(self, **kwargs):
        super().__init__(self, **kwargs)

    def run(self, image):

        # 1. Sigma clipping
        sg_image = image.data.copy()
        mask = np.ones_like(sg_image).astype(bool)
        for _ in range(5):
            mask = np.abs((sg_image - np.median(sg_image[mask]))) < 5*np.std(sg_image[mask])
        sg_image[~mask] = np.nan

        XY = np.indices(image.shape)
        center = np.array(image.shape)/2

        # 2. Fitting the model
        def model(p):
            a, s = p
            return a*gaussian2D(XY, center, s)

        def nll(p, sg_image):
            _model = model(p)
            return np.log(np.nansum((_model - sg_image)**2))

        x0 = [5000, image.shape[0]]
        sol = minimize(nll, x0, bounds=((0, np.nanmax(sg_image)), (0, 2000)), args=(sg_image,))

        # correction
        image.data -= model(sol.x)

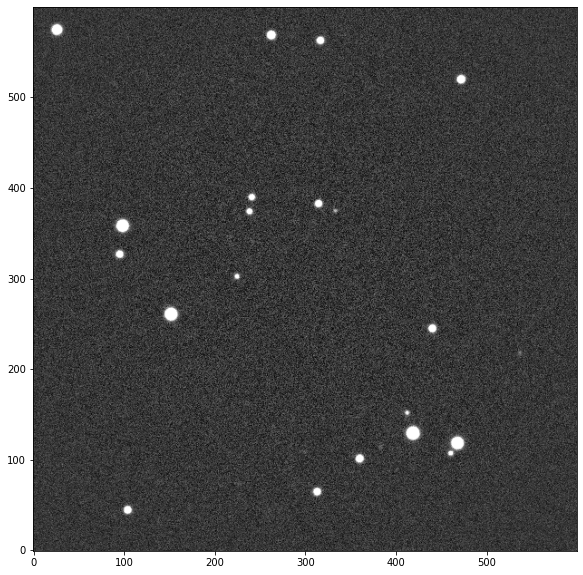

and applying it to data

corrected_image = SimpleVignettingCorr()(image)
_ = corrected_image.show()

User-friendly block

The block SimpleVignettingCorr does the work, but is not optimized. Indeed: 1. XY an center are computed for each image, whereas images with similar characteristics (like shape and center) are more likely to be fed into a sequence 2. The model parameters optimisation always start from an uninformed guess x0, whereas the solution from a previous image is likely to be a good guess 3. the code within run is lengthy and could be organized using class methods

A good way to solve 1. is to provide the block with a reference image, from which XY and center can be pre-computed. To solve 2., the last optmized parameters can be recorded and used as a first guess for the next optimization. Let’s implement these two ideas in the block together with a bit of cleaning (solving 3.)

class BetterVignettingCorr(Block):

    # allowing for a reference image to be provided
    def __init__(self, reference=None, **kwargs):
        super().__init__(self, **kwargs)

        # to avoid re-computing it for every new image
        self.XY = None
        self.center = None

        # to save last optimized parameters
        self.x0 = None

        # pre-computing parameters if reference provided
        if reference is not None:
            self.XY = np.indices(reference.shape)
            self.center = np.array(reference.shape)/2
            self.x0 = [5000, reference.shape[0]]

    @staticmethod
    def sigma_clip(data, n=5, sigma=5):
        sg_image = data.copy()
        mask = np.ones_like(sg_image).astype(bool)
        for _ in range(5):
            mask = np.abs((sg_image - np.median(sg_image[mask]))) < 5*np.std(sg_image[mask])
        sg_image[~mask] = np.nan
        return sg_image

    def model(self, p):
        a, s = p
        return a*gaussian2D(self.XY, self.center, s)

    def chi(self, p, sg_image):
        model = self.model(p)
        return np.nansum((model - sg_image)**2)

    def run(self, image):
        # sigma clipping
        sg_image = self.sigma_clip(image.data)

        # if no reference, using first image to initialize parameters
        if self.x0 is None:
            self.x0 = [5000, image.shape[0]]
        if self.XY is None:
            self.XY = np.indices(image.shape)
            self.center = np.array(image.shape)/2

        sol = minimize(self.chi, self.x0, bounds=((0, np.nanmax(sg_image)), (0, 2000)), args=(sg_image,))
        self.x0 = sol.x # keeping optimized parameters as first guess for next image

        # correction
        image.data -= model(sol.x)

and applying it to data

corrected_image = BetterVignettingCorr()(image)
_ = corrected_image.show()

Note

Here, the performance of BetterVignettingCorr against SimpleVignettingCorr would be very similar, but providing a reference mechanism to a block (so it can precompute some redundant parameters) often greatly improves its performances – see block.SegmentedPeak documentation for an example)

Documentation

Once created, a Block needs to be properly documented in order to be shared and properly maintained.

Acknowledgment

Using your Block in a Sequence might lead to published results. In this context, one would need to properly aknowledge the packages and methods used by your Block, including your own work. To do that, the Block class provide the citations method, that can be overwritten in the following way:

class CitableVignettingCorr(Block):

    def __init__(self, **kwargs):
        super().__init__(self, **kwargs)

    @property
    def citations(self):
        return (
            # we used scipy (known to prose)
            "scipy",
            # your custom reference
            """@misc{my-work, author = "me", title = "My work", year = "2022"}""")

To use it, let’s define a sequence with your block in it

from prose import Sequence, blocks

sequence = Sequence([
    CitableVignettingCorr(),
])

and extract the aknowledgment for it

tex, bib = sequence.citations()

print(tex)
print(bib[0:1500], "...")

This research made use of \textsf{prose} \citep{prose} and its dependencies (scipy \citep{scipy}, my-work \citep{my-work} and astropy \citep{astropy}).

@article{scipy,
       author = {{Virtanen}, Pauli and {Gommers}, Ralf and {Oliphant},
         Travis E. and {Haberland}, Matt and {Reddy}, Tyler and
         {Cournapeau}, David and {Burovski}, Evgeni and {Peterson}, Pearu
         and {Weckesser}, Warren and {Bright}, Jonathan and {van der Walt},
         St{'e}fan J.  and {Brett}, Matthew and {Wilson}, Joshua and
         {Jarrod Millman}, K.  and {Mayorov}, Nikolay and {Nelson}, Andrew
         R.~J. and {Jones}, Eric and {Kern}, Robert and {Larson}, Eric and
         {Carey}, CJ and {Polat}, {\.I}lhan and {Feng}, Yu and {Moore},
         Eric W. and {Vand erPlas}, Jake and {Laxalde}, Denis and
         {Perktold}, Josef and {Cimrman}, Robert and {Henriksen}, Ian and
         {Quintero}, E.~A. and {Harris}, Charles R and {Archibald}, Anne M.
         and {Ribeiro}, Ant{\^o}nio H. and {Pedregosa}, Fabian and
         {van Mulbregt}, Paul and {Contributors}, SciPy 1. 0},
        title = "{SciPy 1.0: Fundamental Algorithms for Scientific
                  Computing in Python}",
      journal = {Nature Methods},
      year = "2020",
      volume={17},
      pages={261--272},
      adsurl = {https://rdcu.be/b08Wh},
      doi = {https://doi.org/10.1038/s41592-019-0686-2},
}


@misc{my-work, author = "me", title = "My work", year = "2022"}


@ARTICLE{astropy,
       author = {{Astropy Collaboration} and {Price-Whelan}, A.~M. and
         {Sip{\H{o}}cz}, B.~M. and {G{"u}nther}, H.~M. and {Lim}, P.~L. and
         {Crawford}, S. ...

Note

For more details, see the aknowledgment reference

Doctring

TODO
